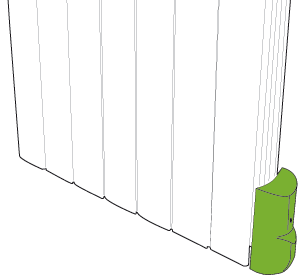

RF3 - 1-channel on/off wireless receiver for fitting to a panel heater
Main features
- Pairing with a room temperature thermostat or with a programmable room temperature thermostat (transmitter).
- Wireless radio-wave transmission.
- Checking pairing with the emitter.
- Execution of heating on/off commands to the heating appliances.
1-channel on/off receivers to pairing to associate with room thermostats
Main features
- Pairing with a room temperature thermostat or with a programmable room temperature thermostat (transmitter).
- Wireless radio-wave transmission.
- Checking pairing with the emitter.
- Execution of heating on/off commands to the heating appliances.
Product plus points
- Reliable wireless transmission: approved Europe-wide, highly resistant to external sources of interference.
- High transmission performance: signals can go through walls and ceilings.
- Practical: the product has a small footprint.
- The receiver is designed to be fitted directly to panel heaters.
Technical characteristics
- Power supply
- Voltage when in use: 230V AC +10/-15%, 50Hz.
- Power cord: H05VVF 2 x 1 square mm, length about 1 meter.
- Relay output: one 10A 230V AC 1 100,000 cycles voltage-free relay output.
- Safety
- Standard: EN60335-1/EN60335-2-30 after installation.
- Equipped panel heater designed to comply with NF (French standards body) safety requirements.
- Environment
- Protection rating: IP44 after installation of the compatible radiator.
- Class: Class II.
- Operating temperature: 0°C to +60°C.
- Storage temperature: -20°C to +60°C.
Radio receiver, frequency 868.3 Mhz.
Can be used throughout Europe.
| CODE | REFERENCE |
|---|---|
| REARF003REIMHA | 1-channel receiver, wireless, for fitting to a panel heater, 10A, IP44 |
RECEIVER RANGE
