BLOWIA - White model

Product plus points

• The control box can be quickly customised by changing the front cover.
• The appliance can be fitted to towel dryers with different widths - of between 500mm and 600mm overall - with no soldering or use of any additional tools.
• Width of 120mm - this facilitates the hanging of towels and makes the appliances perfect for use in small bathrooms.
• Child Safety: Analogue controls locking prevents modification of the settings when it is activated.
• Motion detector:
  – Presence detector: the Boost feature or the Comfort mode is automatically switched on when a movement is detected in the bathroom.
  – Absence detector: automatic ramped lowering of the temperature in successive stages when nobody is at home.
• Operating modes in line with the user requirements:
  – Auto PIR Max: motion detection switched on, the priority is comfort, through the automatic activation of the blower (Boost feature).
  – Auto PIR Eco: motion detection switched on, automatic activation of the Comfort mode, the priority is making energy savings because the blower is not switched on automatically.
  – Auto pilot wire: motion detection switched off, the towel dryer operates as per orders sent via the pilot wire.
  – Anti-Freeze: motion detection switched off, your home is protected against freezing when you are not there.
• Air flow optimized: the blower fins are swiveling/multi-directional.
• Removable anti-dust filter: cleanable, without removing the blower, with a damp sponge.

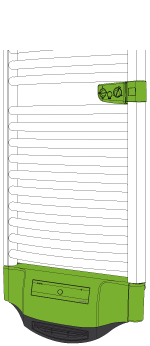

• Blower located at the bottom of the towel heater:
  - Keep the minimum distance between the towel heater and the wall, ideal for narrow space.
  - Keep the facilities to hang the towels like a classic towel heater.
• Tangencial turbine blower insuring a low noise level.
• Anti-vibration device.
• A safety feature prevents the unvoluntary air flow obsturations (filter and ventilation grille) shutting down/switching off the blower.
• A safety feature prevents the room temperature from getting too high when in Boost Mode.
• Saving of the settings: by EEPROM in case of a power shut down.
• “Intelligent” electronic temperature regulation: it provides year-round maintenance of a stable and precise temperature in your home.
• A zero-voltage control device reduces electromagnetic interference compliant with French standard (NF) performance criteria.
• High-precision electronic PID (Proportional Integrated Derivative) temperature control.
• An incorporated temperature sensor, which cannot be accessed from the outside: this means that the product is more robust during shipment and when you are installing it.
• Integrated water-removal system.
• Internal protection against heating anomalies.


  Technical characteristics



• Regulator
  • Voltage when in use: 230V +/-10% 50Hz.
  • ON/OFF switch: 10000 cycles approval.
  • Electric Consumption when the switch is in OFF position: 0W.

• Blower turbine and resistance integrated
  • Over heating security integrated.
  • Maximum power: 1,000W.
  • Relay.

• Output for two Class II immersion heaters
  • Maximum power: 1,250W resistive load.
  • Relay plus triac control device at 0 voltage.
  • Anti-overheating security by bimetal TCO.

• Power cord
  • Class II: 800mm, 2 conductors or 3 conductors.

• Safety
  • standards : EN60335-1/EN60335-2-30/EN60335-2-43.

• Environment
  • Protection factor: IP24.
  • Class: Class II after installation under the responsability of the integrator.
  • Operating temperature: 0°C to 50°C.
  • The desired (set) temperature can be adjusted from +10°C to +30°C approximately.
  • Storage temperature: -20°C to +70°C.
  • Electronic PID control employing a microprocessor.
  • Electronic NTC temperature sensor.
  • 6-order pilot wire.
